User-friendly monitoring display for solar MPPT controllers with RS-485 communication.

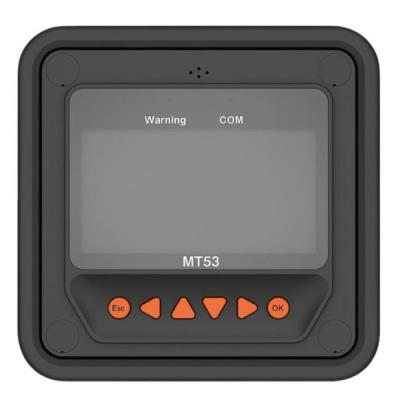

The external LCD display MT53 is designed for monitoring and configuring solar charge controllers with RS-485 communication support, including the latest IT/ET-NC G3 series models. The display connects simply via RJ-45 port and is powered directly from the controller, eliminating the need for separate power supply and simplifying installation.
The display allows real-time monitoring of operating status, setting of control parameters, and access to system information. With its readable LCD display, intuitive button control, and wall or panel mounting options, it offers reliable local monitoring without the need for additional power cabling.
Easy installation and operation
The display is supplied with a standard RS-485 communication cable CC-RS-485-RS-485-200U with a length of 2 m. If the controller is equipped with a non-standard RJ-45 interface, the appropriate communication cable must be purchased. The display should not be installed in environments with strong electromagnetic interference.
Readable LCD display
The screen serves as a user interface for displaying all important information. For optimal readability, it is recommended to maintain a viewing angle within 90° from the horizontal plane – exceeding this angle may reduce readability.
Status indicators
The display is equipped with a fault indicator that flashes when an error occurs (see controller manual for details), and a communication indicator showing the connection status between the MT53 and the connected controller.
Package contents
MT53 display, RS-485 communication cable (2 m), mounting hardware, user manual.
BASIC SPECIFICATIONS
Display: LCD, backlit, monochrome
Interface: RS-485 (RJ-45 connector)
Supply voltage: DC 5 V
Power consumption: 15 mA (without backlight), 23 mA (with backlight)
Front panel dimensions: 98 × 98 mm
Overall dimensions: 114 × 114 × 48.2 mm
Weight: 230 g
Operating temperature: –20 to +70 °C
Compatibility: IT-NC G3, ET-NC G3 (lead-acid batteries)
| Brand | |
| Type specification : | Electrical accessories up to 1kg |
| Manufacturer : | EPEVER |
| Technical specification | |
| Max. operating temperature (°C) : | 70 |
| Min. operating temperature (°C) : | -20 |
| Inputs and outputs | |
| Connector : | RJ-45 |
| Power supply | |
| Rated Voltage (V) : | 5 (DC) |
| Warranty | |
| Warranty period EU (months) : | 26 |
| Warranty period CRN (months) : | 26 |
| Usage and purpose | |
| Type of accessories : | external display |
| Physical properties | |
| Depth (mm) : | 48.2 |
| Weight (kg) : | 0.23 |
| Width (mm) : | 114 |
| Height (mm) : | 114 |
