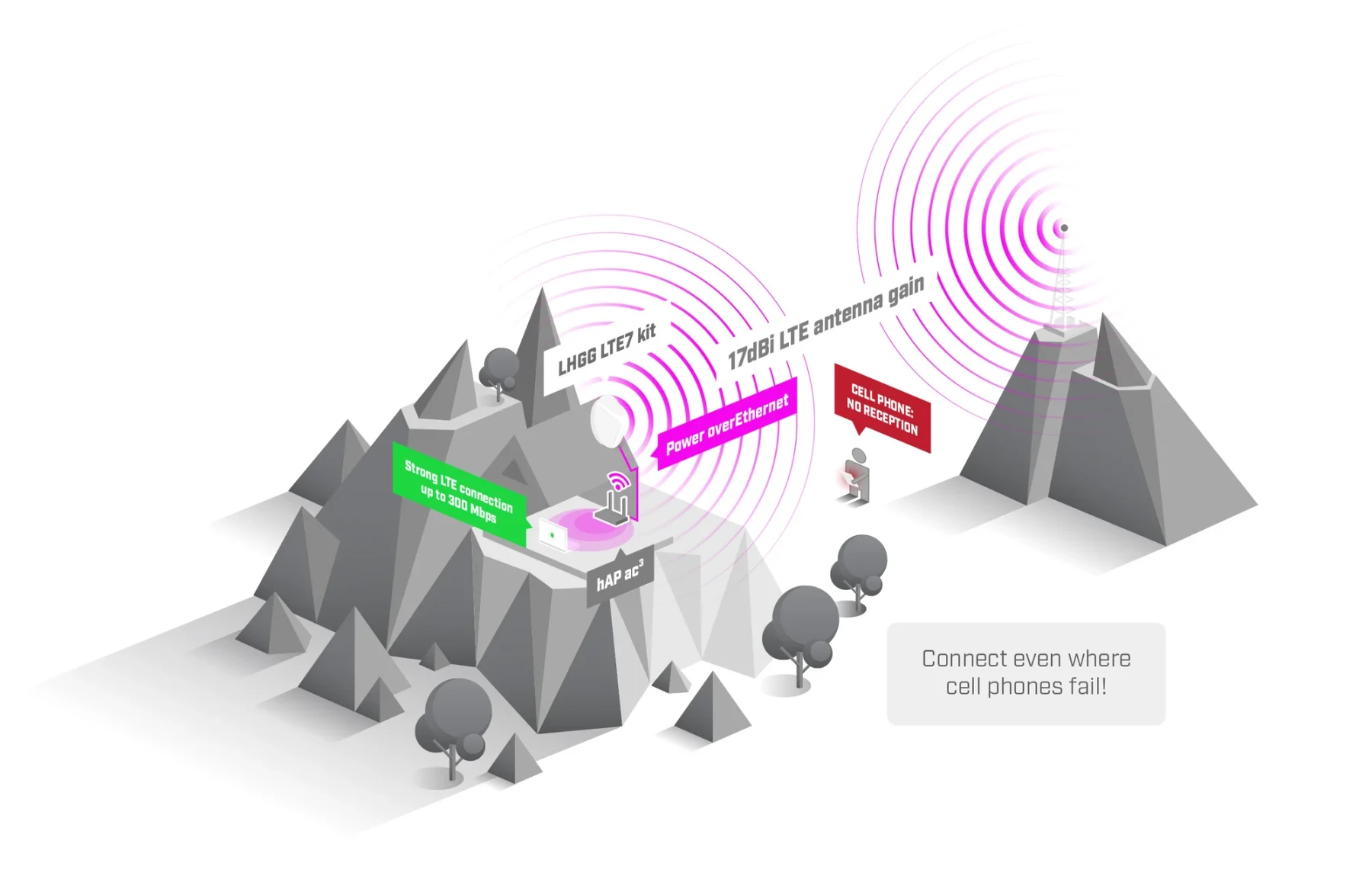

High-performance solution (outdoor unit) for high-speed internet in remote locations where regular mobile signal fails.

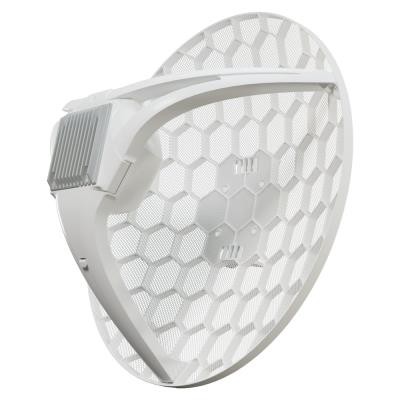

The outdoor LTE antenna/unit LHGG LTE7 kit from MikroTik represents a professional solution for internet connectivity in places where cable infrastructure is not available. The device combines a high-gain directional antenna with 17 dBi gain and a Category 7 LTE modem with R11e-LTE7 module, which supports download speeds up to 300 Mbps and upload up to 100 Mbps – double the upload speed compared to previous generations.

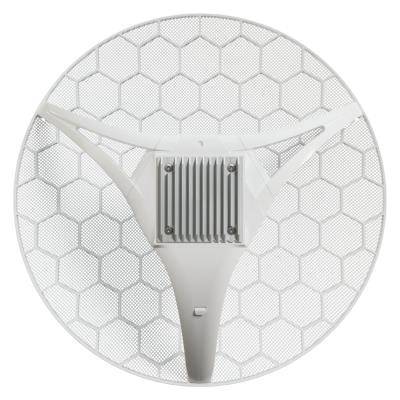

The antenna is equipped with a dual-core ARM 88F3720 processor running at 800 MHz, 256 MB DDR3L RAM and a Gigabit Ethernet port with PoE-In support (802.3af/at). The grid construction with dimensions 391 × 391 × 227 mm minimizes wind load while maintaining high antenna gain. Operating temperature range -40 to +70 °C and massive heatsink ensure reliable operation even in extreme conditions.
Extended frequency support
The R11e-LTE7 modem supports LTE FDD bands 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz) and 32 (1500 MHz), as well as TDD bands 38 (2600 MHz), 40 (2300 MHz) and 41 (2500 MHz). For 3G connectivity, bands 1, 3, 5 and 8 are available with speeds up to 42.2 Mbps download and 5.76 Mbps upload.
Flexible power supply and mounting

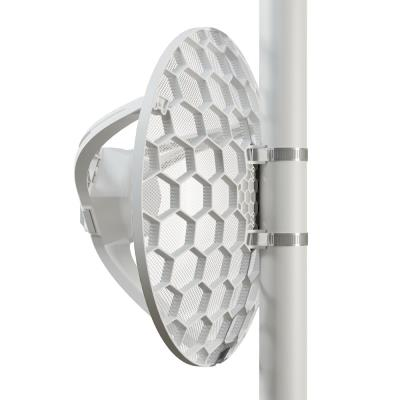

The device can be powered via PoE-In in the range of 12–57 V or with the included 24V adapter. Maximum power consumption is only 8 W. The package includes two cable ties and K-LHG mounting kit.

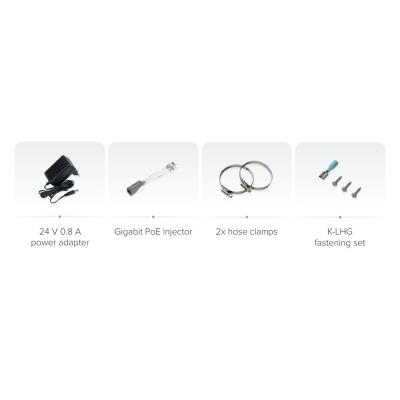

Package contents
LHGG LTE7 kit, power adapter (24 V), Gigabit PoE injector, 2× cable tie/clamp, K-LHG mounting kit
BASIC SPECIFICATIONS
Processor: dual-core ARM 88F3720, 800 MHz, 64bit
RAM: 256 MB DDR3L
Storage: 16 MB Flash
LTE modem: R11e-LTE7, Category 7 (DL: 300 Mbps, UL: 100 Mbps)
MIMO: DL 2×2, UL 1×1
LTE FDD bands: 1, 3, 5, 7, 8, 20, 28, 32
LTE TDD bands: 38, 40, 41
3G bands: 1, 3, 5, 8 (DL: 42.2 Mbps, UL: 5.76 Mbps)

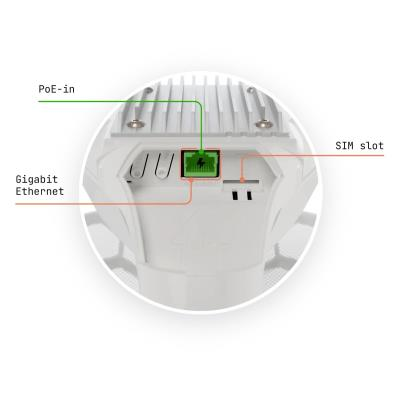

Ethernet: 1× Gigabit port with PoE-In (802.3af/at)
Power supply: 12–57 V (PoE-In) or DC adapter (24V/0.8A)
Power consumption: max. 8 W
Operating system: RouterOS v7, Level L3 license
Operating temperature: -40 to +70 °C
Dimensions: 391 × 391 × 227 mm
| Brand | |
| Type specification : | Wi-Fi/LTE/5G unit |
| Manufacturer : | MIKROTIK |
| Technical specification | |
| Ethernet (Mbps) : | 1000 |
| LTE/4G/5G (Mbps) : | 300 |
| NAND (MB) : | 16 |
| PoE-in : | 802.3af/at |
| PoE-out : | ne |
| Outdoor use : | yes |
| Indoor use : | no |
| Placement : | pole mounting |
| Max. operating temperature (°C) : | 70 |
| Min. operating temperature (°C) : | -40 |
| Data Rate (Mbps) : | 300 |
| Ingress protection : | IP54 |
| Gain (dBi) : | 17 |
| Processor | |
| Number of Cores : | 2 |
| Processor : | 88F3720, 0,8 GHz |
| Memory | |
| Memory size (MB) : | 256 |
| Communication | |
| 3G support : | yes |
| 4G/LTE support : | yes |
| 5G support : | no |
| Network interfaces | |
| Gigabit LAN : | yes |
| LAN : | yes |
| Standards : | 802.3af/at |
| Port Speed : | 1 Gb/s |
| Wi-Fi : | no |
| Inputs and outputs | |
| Connector : | 1× RJ-45 |
| RJ-45 : | 1 |
| Extension : | 1x miniPCI-e |
| RS-232 : | no |
| Slots : | 1× LAN, 1× SIM slot |
| Output to ext. antenna : | no |
| Power supply | |
| Input voltage (V) : | 12 - 57 (PoE) |
| Max. Voltage (jack) (V) : | 24 |
| Max. Voltage (PoE) (V) : | 57 |
| Min. Voltage (jack) (V) : | 24 |
| Min. Voltage (PoE) (V) : | 12 |
| PoE support : | yes |
| Power consumption - typical (W) : | 8 |
| Operating system | |
| License : | L3 |
| Operating system : | RouterOS v7 |
| Support | |
| SIM slot : | yes |
| Physical properties | |
| Color : | white |
| Dimensions : | 391 × 391 × 227 mm |
| Additional equipment and features | |
| Certification mark : | CE, EAC, ROHS |
| Warranty | |
| Warranty period EU (months) : | 26 |
| Warranty period CRN (months) : | 26 |
