Advanced MPPT charge controller of the IT-NC G3 series for medium to large solar systems with 50 A charging current and support for 12/24/48 V voltage systems.
The solar charge controller offers top-tier MPPT tracking efficiency of 99.5% and maximum conversion efficiency of 98.3% for optimal energy utilization from photovoltaic panels. It supports maximum open circuit voltage of 200 V at lowest temperature and 180 V at 25 °C, allowing connection of more panels in series.

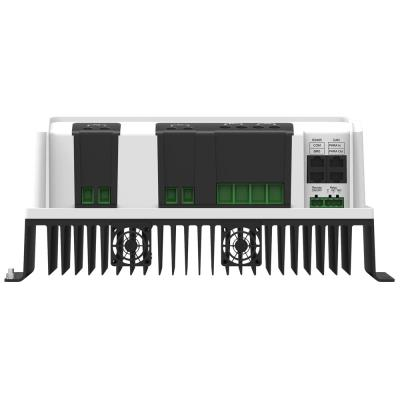

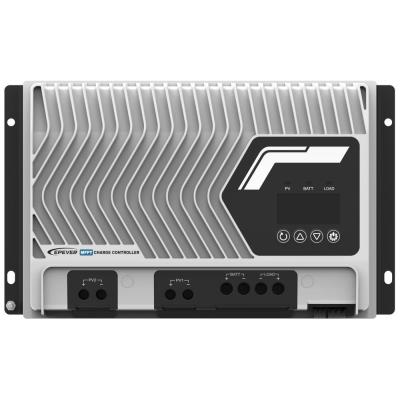

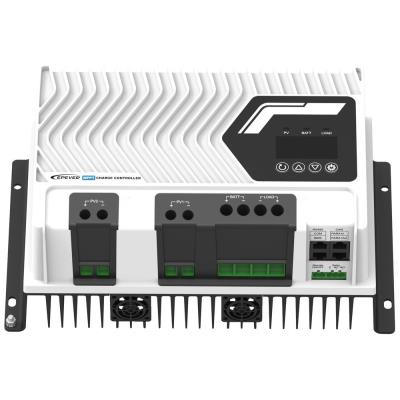

The controller is equipped with a robust die-cast metal housing with IP43 protection rating including white terminal cover for protection against dust and moisture. The construction ensures reliable operation in temperature range of -25 °C to +60 °C with automatic power derating above 40 °C.
Communication and monitoring
The controller features an RS-485 communication port with 5 V DC/200 mA power supply (RJ-45) for connecting optional Bluetooth, Wi-Fi, or 4G modules. The CAN interface enables parallel operation of up to 6 devices with or without batteries. BMS communication ensures reliable charge and discharge management of EPEVER lithium batteries; for others, a BMS-LINK module is required.
Performance parameters
At full load, the controller achieves 97.1% efficiency with temperature compensation of -3 mV/°C/2 V. Self-consumption is 98 mA/12 V, 60 mA/24 V, 46 mA/48 V with communication enabled, or 48 mA/12 V, 25 mA/24 V, 14 mA/48 V with communication disabled.
Installation and connection
The controller has dimensions of 307 × 253 × 143 mm with cover or 307 × 202 × 134 mm without cover. Mounting dimensions are 295 × 130 mm with 7 mm diameter holes. Recommended cable cross-section is 6 AWG/16 mm2 with weight of 5.07 kg including cover or 4.86 kg without cover.
BASIC SPECIFICATIONS
Electrical parameters
Rated battery voltage: 12 / 24 / 48 V DC (automatic detection)
Operating voltage range: 8–62 V
Rated charging/discharging current: 50 A
Maximum charging power: 650 W / 12 V, 1,300 W / 24 V, 2,600 W / 48 V
Rated load current: 50 A
Maximum PV open circuit voltage: 200 V (at lowest temperature), 180 V (at 25 °C)
MPPT operating range: (battery voltage + 2 V, min. 28 V) up to 144 V (at 25 °C)
Maximum conversion efficiency: 98.3 %
Full load efficiency: 97.1 %
Self-consumption (communication enabled): 98 mA / 12 V; 60 mA / 24 V; 46 mA / 48 V
Self-consumption (communication disabled): 48 mA / 12 V; 25 mA / 24 V; 14 mA / 48 V
Battery types: AGM, Gel, flooded, LiFePO4, Li(NiCoMn)O2, user-defined
Dry contact: 5 A/30 V DC (max. 0.5 A/60 V DC)
Communication: RS-485 (5 V DC / 200 mA, RJ-45)
Mechanical parameters
Dimensions with cover: 307 × 253 × 143 mm
Dimensions without cover: 307 × 202 × 134 mm
Mounting dimensions: 295 × 130 mm
Weight: 5.07 kg (with cover), 4.86 kg (without cover)
Protection rating: IP43 (with white terminal cover), IP32 (without cover)
Terminal block: 6 AWG/16 mm2
Recommended cable: 6 AWG/16 mm2
Operating temperature: -25 to +60 °C (full power up to 40 °C)
LCD display temperature range: -20 °C to +70 °C
Storage temperature: -30 °C to +70 °C
| Brand | |
| Type specification : | Regulator |
| Manufacturer : | EPEVER |
| Technical specification | |
| Maximum Power (W) : | 2600 |
| Max. operating temperature (°C) : | 60 |
| Min. operating temperature (°C) : | -25 |
| Technology : | MPPT |
| Inputs and outputs | |
| Connector : | terminal |
| Power supply | |
| Rated Voltage (V) : | 12/24/48 |
| Max. input voltage (V) : | 200 |
| Max. output current (A) : | 50 |
| Physical properties | |
| Depth (mm) : | 143 |
| Weight (kg) : | 5.07 |
| Width (mm) : | 253 |
| Height (mm) : | 307 |
| Warranty | |
| Warranty period EU (months) : | 26 |
| Warranty period CRN (months) : | 26 |
