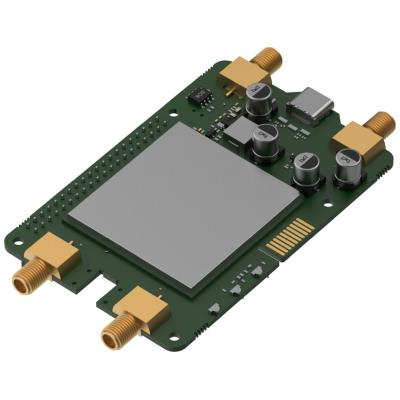

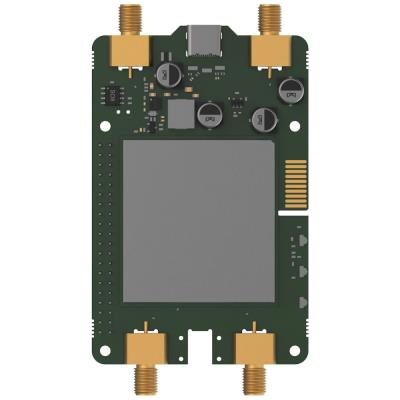

Compact 5G modem designed for direct mounting on Raspberry Pi 4 and 5 provides mobile connectivity where Wi-Fi or Ethernet is not available.
The Calyx 5G module is an expansion HAT+ card with full 5G Sub-6GHz SA/NSA support with transfer speeds up to 2.4/3.4 Gb/s (DL; 4×4 MIMO) and 900/550 Mb/s (UL; 2×2 MIMO). It also supports 4G LTE Cat 19 with speeds up to 1.6 Gb/s (DL) / 200 Mb/s (UL) and 3G networks with speeds up to 42 Mb/s (DL) / (5.76) Mb/s UL.
The module connects directly to the 40-pin GPIO connector of Raspberry Pi and offers power via GPIO (DC 5 V and 3.3 V), or a separate USB-C port. With compact dimensions of 100.8 × 56 × 23.11 mm and weight of only 57 g, it takes up minimal space. The module supports a wide temperature range of -40 to +75 °C, enabling deployment in industrial applications.
GPIO modem control
The module offers advanced control via Raspberry Pi GPIO pins. The PWR_KEY pin allows modem power on/off, the Modem reset pin performs modem reset, and the Modem wakeup pin wakes the modem from sleep mode.
Flexible power supply

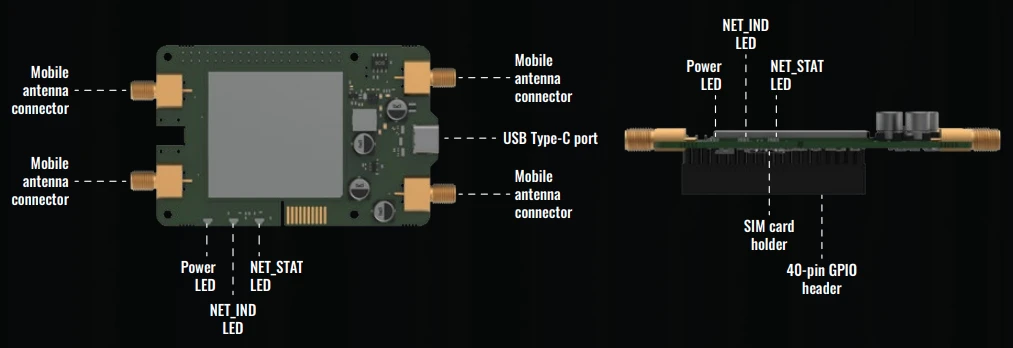

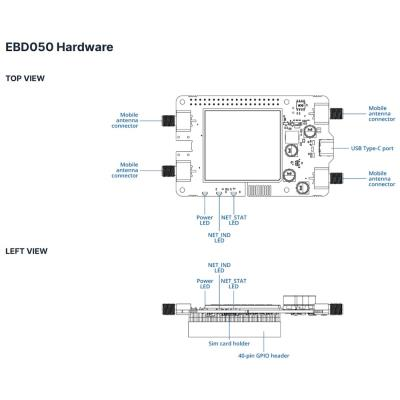

Calyx supports two power supply methods: via 40-pin GPIO header with 5 V and 3.3 V DC voltage or via separate USB-C port with 5 V DC voltage. The module is equipped with status LED indicators (Power, NET IND, NET STAT) for easy connection status monitoring.
Package contents
Calyx modem, manual, mounting kit, 40-pin PCB connector, USB-C to USB cable.
BASIC SPECIFICATIONS
Model: Calyx 5G (EBD050)
Mobile module: 5G Sub-6GHz SA/NSA 2.4/3.4 Gb/s DL (4×4 MIMO), 900/550 Mb/s UL (2×2); 4G LTE Cat 19 up to 1.6 Gb/s DL/200 Mb/s UL; 3G up to 42 Mb/s DL/5.76 Mb/s UL
Compatibility: Raspberry Pi 4 and 5
USB interface: USB 3.0 (USB-C)
Power supply: 40-pin GPIO (5 V and 3.3 V DC) or USB-C (5 V DC)
SIM card: 1× nano SIM slot (4FF)
Antenna connectors: 4× SMA for mobile antennas
Status LEDs: 1× Power, NET IND, NET STAT
GPIO functions: PWR_KEY, Modem reset, PCM, Modem wakeup
Operating temperature: -40 to +75 °C
Dimensions: 100.8 × 56 × 23.11 mm
Weight: 57 g
Certifications: CE, UKCA, EAC, UCRF, RCM, CB, WEEE
| Brand | |
| Type specification : | Modem |
| Manufacturer : | TELTONIKA |
| Technical specification | |
| FTTH : | no |
| LTE/4G/5G (Mbps) : | 3400 |
| Mobilní připojení : | SIM slot |
| Outdoor use : | no |
| Indoor use : | yes |
| Max. operating temperature (°C) : | 75 |
| Min. operating temperature (°C) : | -40 |
| Industrial design : | yes |
| Data Rate (Mbps) : | 3400 (5G), 1600 (LTE) |
| QoS a bandwidth shaper : | no |
| VPN : | no |
| xDSL : | no |
| Display | |
| Display : | no |
| Network interfaces | |
| Gigabit LAN : | no |
| LAN : | no |
| Wi-Fi : | no |
| WEP security : | no |
| WPA security : | no |
| WPA2 security : | no |
| Antenna | |
| Connectable antennas : | 4 |
| Antenna type : | without its own antenna (SMA) |
| Inputs and outputs | |
| Connector : | 4× SMA, 1× USB-C, 1× SIM |
| Output to ext. antenna : | yes |
| Card reader | |
| MicroSD card support : | no |
| Power supply | |
| Input voltage (V) : | 3,3 (DC) |
| Input voltage (V) : | 5 (DC) |
| PoE support : | no |
| Input Voltage (V) : | 5 (DC) |
| Input Voltage (V) : | 3,3 (DC) |
| Physical properties | |
| Color : | green - gray |
| Depth (mm) : | 100.8 |
| Weight (g) : | 57 |
| Weight (kg) : | 0.057 |
| Dimensions : | 100,8 × 56 × 23,11 mm |
| Width (mm) : | 56 |
| Height (mm) : | 23.11 |
| Additional equipment and features | |
| LED indication : | yes |
| Certification mark : | CE, UKCA, EAC, UCRF, RCM, CB, WEEE |
| Warranty | |
| Warranty period EU (months) : | 26 |
| Warranty period CRN (months) : | 26 |
